CAS号 [92-29-5] 生产工艺。 三苯甲醛缩二胺

CAS号 [92-29-5] 生产工艺。  三苯甲醛缩二胺

CAS名:Methanediamine, 1-phenyl-N,N’-bis(phenylmethylene)-  历史参考文献:Beil. 7. E3, 838。

用途:有机合成,医药等。 LookChem网登录生产与经营单位27家。 反应类别:缩合。

FIAT 1313, I, 162-163.(=胶卷PB 85172)。 Hydrobenzamide  (I.G. Hoechst). 美国人译自德文,无资料来源。

反应式:本人有加注,暂未找到德文原件。


Plant capacity: 设备生产能力:10 tons.  10吨。

Equipment: 设备:

1)  Autoclave, iron, with stirrer, 3 cu. m.
2)  Measuring vessel, iron 800 l.
3)  Stoneware suction filter,  2 X 4 m., with receiver.

Materials used per ton: 每吨原料单耗:
Benzaldehyde   1140 kg. ;   Aqueous ammonia, calculate as 100 percent   215 kg.

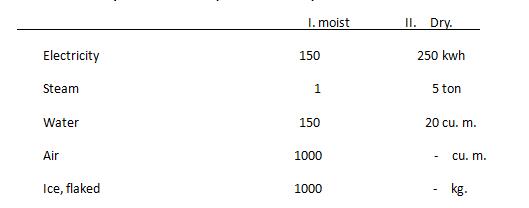

Service requirements per ton of product:  每吨公用工程单耗:



Procedure: 操作步骤:

500 kg of benzaldehyde, 1500 l of water and about 400 kg of ice are introduced into (1) so that the temperature is 00 to 3℃.  Then 450 l of aqueous ammonia, 24% are quickly added.  The temperature rises to 12℃.  By slight heating it is increased to 18℃.  The temperature then spontaneously rises to about 40℃. in the course of 8 to 10 hours.  The whole is then stirred for 10 – 12 hours at 35℃., then cooled to 20 – 25℃. and filtered on (3).  The contents of the suction filter is covered once more water, sucked until dry and dried in the drying closed with circulating air at 40 – 50℃.  Yield: 440 kg.

Control: 生产控制:

Determination of the boiling range of benzaldehyde.

Determination of the melting poiny of hydrobenzamide.

Quality: 质量要求:Benzaldehyde: boiling point 179℃.; boiling range up to 3.7℃.

Hydrobenzamide: melting point 110℃.



张澍声《精细化工中间体工业生产技术》。《染料工业》编辑部 出版。1996年。P. 96.  三苯甲醛缩二胺,译自FIAT 1313, I, 162。

在3000 L高压釜中加入500 kg 苯甲醛,1500 L水和约400 kg冰,使温度为0 – 3℃,然后迅速加入450 L 24% 氨水,温度上升到12℃。稍微加热上升到18℃,然后于8 – 10小时温度自动上升到约40℃,再在35℃搅拌10 – 12小时。冷却到20 – 25℃,过滤,水洗,抽干,用循环空气在40 – 50℃干燥。得到440 kg 三苯甲醛缩二胺。熔点110℃。(抄注:这是非正式出版物)。



【国内】正式出版物,未见有此化合物报导!(可能是本人收录的资料有限!)。



【读报有感】新民晚报。2020年4月20日第七版。今日论语“抄袭风”何时休!

国内的“内部资料”有多人抄录,而且是公开出版,而被美国人公开的那些资料,至今未见有人翻译出版!有人可能会说,没有编目!



陈忠源 2020年4月22日星期三。
